Geo-routing, A/B testing and dynamic configuration with Lambda@Edge — part 1

Working at the edge is one of the fantastic opportunities offered by Amazon and AWS Lambda is the key component for enhancing our infrastructure on the edge.
More recently many other vendors started to offer similar services like Cloudflare with edge workers for instance, in general many CDNs providers are looking to add a similar service like the AWS one.

Lambda@Edge introduction

Lambda@Edge provides you the possibility to extend the behaviours of a request or response directly on the edge.
This paradigm, in conjunction with the serverless one, can provide a great flexibility in structuring our applications and it can prevent that too many requests hit our application servers executing operations directly on the edge like headers manipulation, access control, redirection rules, images manipulation and so on.
In order to work with Lambda@Edge in AWS we just need to setup a Cloudfront distribution in front of our infrastructure, the Cloudfront distribution will allow us to setup our logic on the edge because we are able to intercept the 4 states of a request and interact with them.
In fact Lambda@Edge can be triggered at:

· viewer request: in this case the lambda is triggered when Cloudfront receives a request from a client
· origin request: the lambda is triggered before Cloudfront forwards the request to origin
· origin response: this state happens after origin replies to a request and Cloudfront receives it
· viewer response: the last state is triggered when Cloudfront forwards the response to the client.

Cloudfront is a global CDN therefore Lambda@Edge is triggered on any edge available across the world.
This means that independently from the region we set our data centre, we can manipulate or serve responses on the edge before they even arrive to our application servers.

I spent some time working on a spike for handling 2 specific features, geo-routing and a/b testing, in the mix I tried also to dynamically retrieve configurations parameters for the Lambda in order to avoid code deployment for every change I needed to do.
I’ll share the results of my spike between 2 posts, this one talks about the initial thoughts, goals and results achieved with Lambda@Edge, the second one will be more technical and I’ll explain how I configure Cloudfront, the Lambda code and setup and the overall setup for interacting with other AWS services on the edge.

Spike goals

Before we start I think is valuable understanding what I wanted to achieve with this spike, the goals are:

1. geo-routing a request to a specific static file stored in S3 bucket based on user country
2. A/B testing different applications serving always maintaining a sticky session per browser so a user always interacts with the same version
3. The previous 2 goals shouldn’t significantly impact the response time, Lambda@Edge has to be executed redirecting the user to the correct static file in 50ms or so
4. “bonus goal” is the possibility to dynamically apply different configurations without redeploying the Lambda code and without impacting too much the response time

Lambda@Edge configuration and limits

All that glitters ain’t gold! Lamba@Edge has several limitations that we need to be aware of before taking it in considerations.
In order to achieve the geo-routing we need to receive from Cloudfront the country viewer header, that will be used to determine where the request is coming from.
This header is received right after Cloudfront forwards the request to origin, we won’t receive at the viewer request state, therefore our Lambda has to be triggered as origin request.
Bear in mind that Cloudfront removes all the headers if not whitelisted for increasing the response cachability, so when we configure our distribution we need to whitelist some specific headers or all of them, depends from our needs.

Lambda@Edge is a particular kind of Lambda with different limitations than the one we are used to work inside an AWS data centre.
First of all the Lambda@Edge has to be created in North Virginia only, we can associate only a numeric released with Cloudfront and not the $latestversion.
When we debug our Lambda@Edge we need to remember that all the logs in Cloudwatch won’t be available in North Virginia only but in the nearest data centre from where the Lambda was executed, for instance I’m based in London therefore during the spike, all the logs on Cloudwatch were available in the London AWS data centre only.
Finally we have also some soft limits to take in consideration like max memory associated to our Lambda@Edge, concurrent executions and so on, you can find them in the image below:

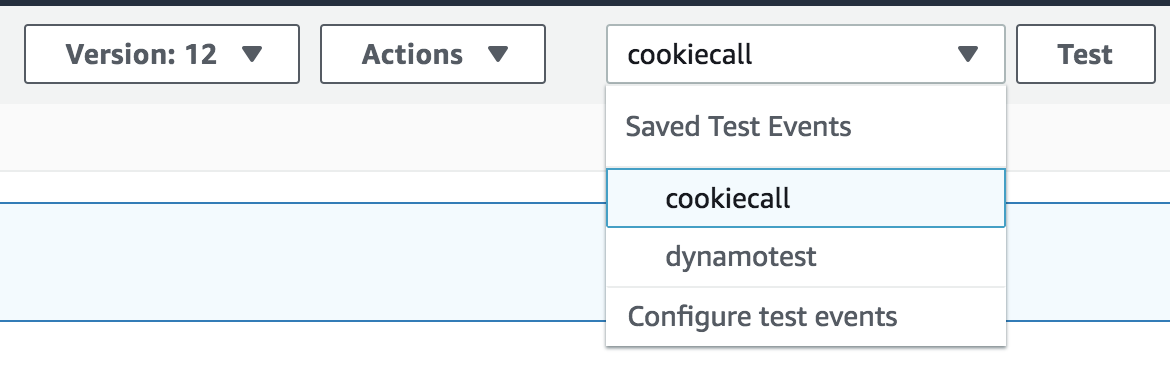

An important thing to remember is how to debug our Lambda@Edge, luckily AWS thought pretty well about this point and they provide a way to simulate an origin request customising the parameters to send it directly from the Lambda console:

Geo-routing

The Geo-routing feature was really easy to achieve considering that Cloudfront provides everything we need out-of-the-box.

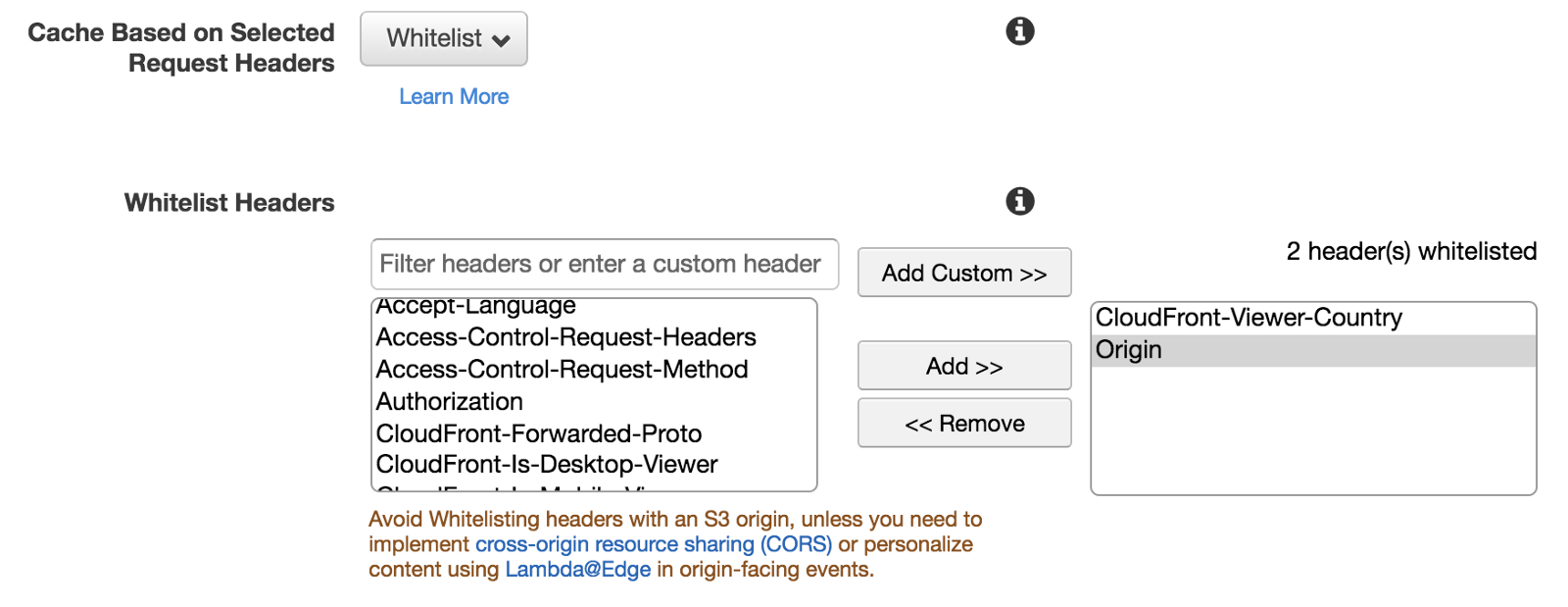

After whitelisting the cloudfront-viewer-country header we can receive in our Lambda@Edge the country from where the request was coming from and we can apply the behaviour we need for that specific country.

After configuring Cloudfront distribution properly we can think about describing our behaviour in the Lambda@Edge, in this case I used Node.js for defining the logic:

These are the headers we are going to receive from Cloudfront:

As we can see the implementation is really easy despite the APIs that could have been designed in a more “friendly” way, but I appreciate they are very extensible and flexible allowing the introduction of new features and maintaining retro-compatibility.

A/B testing

For A/B testing the best way to achieve that on the edge is using cookies after select the static file to serve, also in this case we need to configure properly the Cloudfront distribution for forwarding the cookies to the Lambda@Edge:

In this spike for a specific country I was able to redirect a certain percentage of users to a static file and all the others to another one.
This mechanism becomes very handy when we want to test new versions of our web applications, so we can do a canary release and see how the new version behaves compare to the previous one.
Combining A/B testing functionality with the geo-routing feature we can deploy a new artifact in a specific country with a small percentage of users redirected to it, leaving the majority of our users consuming the previous version.
Considering we are using cookies, bear in mind that all the latest version of the browsers allow to store a cookie before doing a redirection but if you are targeting older browsers like IE 10 or similar it’s better to give it a try.
The same concern is valid if you have in your logic multiple redirections in place.

Dynamic Configuration

The bonus feature for the spike was retrieving a configuration for the URLs and the percentage of users we need to redirect on a region basis.
In this case I tried a couple of solutions, the first one with DynamoDB and the second with an S3 bucket where I stored a JSON file.
First of all I need to admit I was surprised that I was able to access a Dynamo table from the edge considering Dynamo is not global like S3 or Cloudfront, so I decided to give it a go.
I structured my table with an ID for each single information I wanted to make dynamic (the URL of an experiment, the percentage of users to redirect to a static file or the other one…) and then I tried 2 approaches, one using scanmethod and the other using get method.
Using scan was slightly slower than using get method but in any case I was over 50ms for Lambda execution therefore DynamoDB wasn’t a viable option for this use case.

I then tried a simple JSON file stored in a S3 bucket, in this case I was able to quickly configure my Lambda retrieving all the parameters I needed for changing URLs or percentage of users redirected to a specific experiment without redeploy the Lambda code.

This could look a small win but you will understand soon that for deploying a new version of a Lambda@Edge we need around 15 minutes before it’s fully propagated across the world.
Retrieving the parameters from an external file allowed to change the key part of the script in a matter of seconds, just the time to make the change in the JSON file and upload on S3.

Considering the operations we usually handle on the edge are very delicates for our infrastructure, having a mechanism to quickly change the behaviour of our logic is fundamental in particular if you are running a B2C service like in my case.

Performances

I didn’t mention in the post any metric because I wanted to gather them in a paragraph for easily compare them, so I created this table related to the executed time in each test I did for achieving the full functionality.

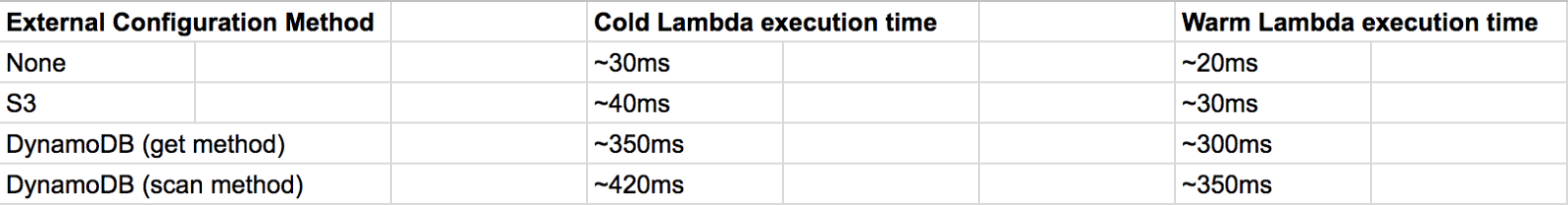

In the table you will see 4 scenarios:
. without any external configuration
. retrieving a JSON file from a S3 bucket
. using DynamoDB with the get method
. using DynamoDB with the scan method

I’d like to add a bit of more context just to make sure you understand how these metrics were retrieved.
DynamoDB was created in North Virginia and the Lambda was running from Europe, I didn’t try yet working with Global Tables but that will be part of a new spike I need to do in the next month, Global Tables could effectively change the execution time of the Lambda but we’ll see.
The execution time for each lambda was gathered from Cloudwatch running each scenario at least 10 times and providing the average you can see in the table.

I leave to you the considerations on the different methods used during the spike.

Useful resources

Following I gathered some useful resources for starting your journey… on the edge

Lambda@Edge limits
Lambda@Edge restrictions
Lambda@Edge pricing
Cloudfront and Lambda@Edge
Routing at the edge tutorial

Wrap up

As we have seen in this post, Lambda@Edge can become very handy for many situations, in particular for alleviating the load of our application servers.
The spike described above is just one of the many possibilities that Lambda provides on the edge, searching on the web you can find interesting tutorials like image manipulations or JWT validation on the edge, this could be just the beginning of a new way to structure our applications providing better performances and easy configurations for our web applications or APIs.
If you are wondering what would be the cost of using Lambda at the edge I leave you with this cost scenario available on the AWS website:

In the next post I’ll present how I set up Cloudfront, S3 and the Lambda code for achieving the goals of my spike, keep an eye on my social accounts 😉

Advertisements

Running Webpack on AWS Lambda

AWS Lambda, but more importantly the serverless ecosystem, is changing the way we can create and think our softwares on the cloud.
With serverless we can really focus on coding our service more than worrying about the infrastructure. Serverless is not useful in any occasion but there is a wide range of situation where using it becomes handy and very powerful.

For instance, let’s think for a moment our automation build pipeline: what would you say if I can tell you that you won’t need to tight them with a specific tool like Jenkins or Bamboo but you should use Jenkins or similar as luncher running multiple Lambda functions, in parallel or in sequence, levering the power of the cloud?

I can give you a concrete example, yesterday night I was doing a spike in order to generate a Javascript bundle on the cloud with Webpack.
Therefore I invested some time creating an AWS Lambda that executes Webpack for bundling a simple example that contains lodash and some ES6 code like this one:

import _ from ‘lodash’;
function component () {
       var element = document.createElement(‘div’);
       element.innerHTML = _.join([‘Hello’,’webpack’], ‘ ‘);
       return element;
}
document.body.appendChild(component());

This is an example that you can find in the webpack official website, I used that just for the sake of the demo.
What we want to do now is the possibility to bundle this ES6 code and its library to a unique Javascript file that could be used inside our hypothetic application or website, mimicking what a step of a build pipeline would do.
Obviously you could run any other executables inside AWS Lambda, I choose Webpack because was the one used in my working place.

AWS Lambda at the rescue

If you create an automation pipeline on the cloud and maybe you don’t have many devops in your team or company, you should spend some time learning AWS Lambda, it could help out in these kind of activities.

What is AWS Lambda? Long story short: it’s a stateless docker container that is maintained by AWS where you can focus on writing the business logic of your activity more than thinking on the infrastructure.

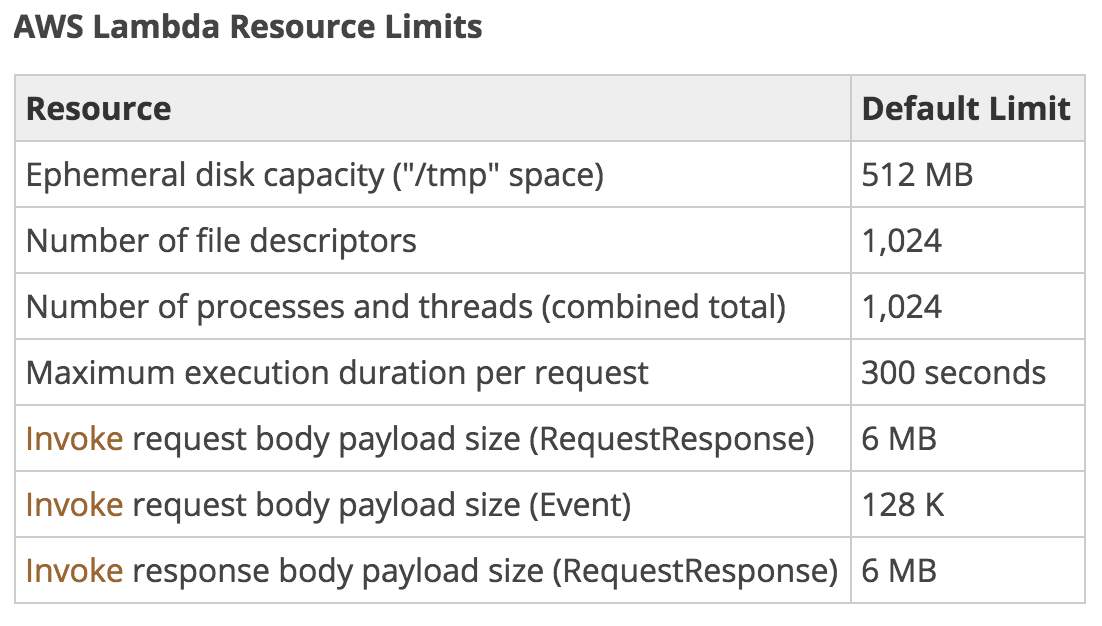

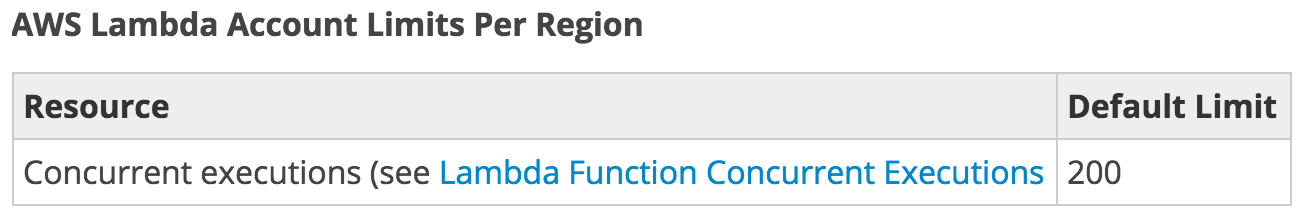

Too good for being true? Yeah, you are right, Lambda has some limitations:

Information retrieved from Amazon documentation in March 2017
Information retrieved from Amazon documentation in March 2017
Information retrieved from Amazon documentation in March 2017

More information regarding the limits are available in the Lambda documentation website

But still the amount of things you can do with it is pretty impressive!

So, going back to our main goal, we want to bundle our Javascript project with Webpack inside Lambda, how can we achieve that?

First thing first, I created a git repository where you can find a Javascript project to simply use inside a AWS Lambda function. In this way you won’t need to create a custom project and you can focus more on the AWS side.
There are few points that I’d like to highlight in this simple project because usually are the ones that you can waste your time:

  1. Lambda functions can save temporary files inside the /tmp/ folder (bear in mind that you are running your code inside a docker container!).
    If you try to save somewhere else you will receive an error trying executing it.
  2. With Lambda you can run executables or node CLI tools like NPM or Webpack just uploading them inside your Lambda environment and referring to them with relative path.
  3. AWS Lambda runs for not more than 300 seconds therefore if you have a complex operation you could split it up in different chained Lambda functions that are triggered in sequence.
    This should help you in debugging your operations too.

In the project I set up the webpack config file in this way:

var path = require('path');
module.exports = {
   entry: './app/index.js',
   output: {
      filename: 'bundle.js',
      path: path.resolve('/tmp/')
   }
};

As you can see I’m saving my bundle in the tmp folder because is the only one with write permissions (remember the capacity limit of 512MB for that folder).

Then I created an index.js file where I describe my Lambda function:

var spawn = require('child_process').spawn;
var fs = require('fs');


exports.handler = (event, context, callback) => {
   var wp = spawn('./node_modules/.bin/webpack', ['--config', 'webpack.config.js']);

   wp.stdout.on('data', function(data){
     console.log('stdout: ' + data);
   });

   wp.stderr.on('data', function(err){
     context.fail("writeFile failed: " + err);
   });


   wp.on('close', (code) => {
     fs.readFile('/tmp/bundle.js', 'utf8', function (err, data) {
         if (err) context.fail("read file failed: " + err);
         context.succeed(data);
     });
   });
};

Very simple code here, I’m using Node, as you can see, but potentially you could use Python or Java (these 3 languages are supported by AWS Lambda at the moment), up to you peeking your favourite.
I import the spawn method in order to run webpack and once it has finished I read the content inside the Javascript bundle file created by Webpack in the tmp folder and I return it via context.succeed method.
Context is an object, always available inside a Lambda function, that will allow you to interact with Lambda for retrieving some useful information or, like in this case, to define when the function succeed or failed.

Now we are ready to upload the application in an AWS Lambda function.
In order to do that you will need to zip your project files (not the parent folder but just the files) and upload then in AWS.
If you didn’t install the project dependencies after cloning the repository, you should do it before uploading it to AWS.

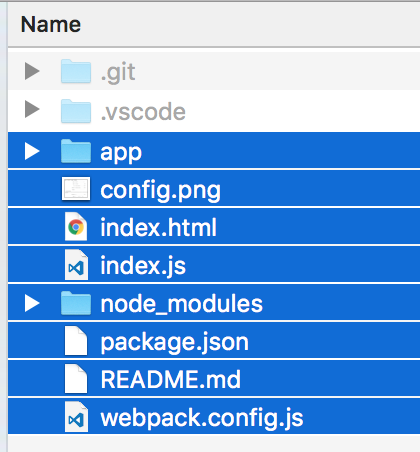

Select and compress only the files inside your project not the parent folder

Inside your AWS console, after selecting Lambda service, you should be able to create a new function (as far as I know not all the regions are supporting AWS Lambda).
Choose your favorite language, in my case Node 4.3, and define the basic information like “function name”, “description” and so on.
Then instead of writing the Lambda function code inside the editor provided by AWS, open the dropdown and select Upload a ZIP file

Select upload a ZIP file

Then setup the handler, role and advanced settings in this way

it’s important set at least 30 seconds as Timeout period

The important part will be setting up the docker container where the Lambda is going to be executed with enough memory size and with a decent timeout because we are running an executable therefore we don’t want to block the execution due to a Lambda timeout.
If for any reason, you need to increase the 300 seconds soft limit set by default, you will need to contact Amazon and ask to increase it.
Another important information to remember is when the Lambda is not active for a certain amount of time (it’s estimated to 5 mins), the container used by your code will be re-used for other Lambda functions.
Therefore when you will trigger your function again it will be recreated (cold Lambda), instead if the Lambda function runs several times in few mins (warm Lambda) we will have better performances because the container will be already available and live to execute a new activity again.

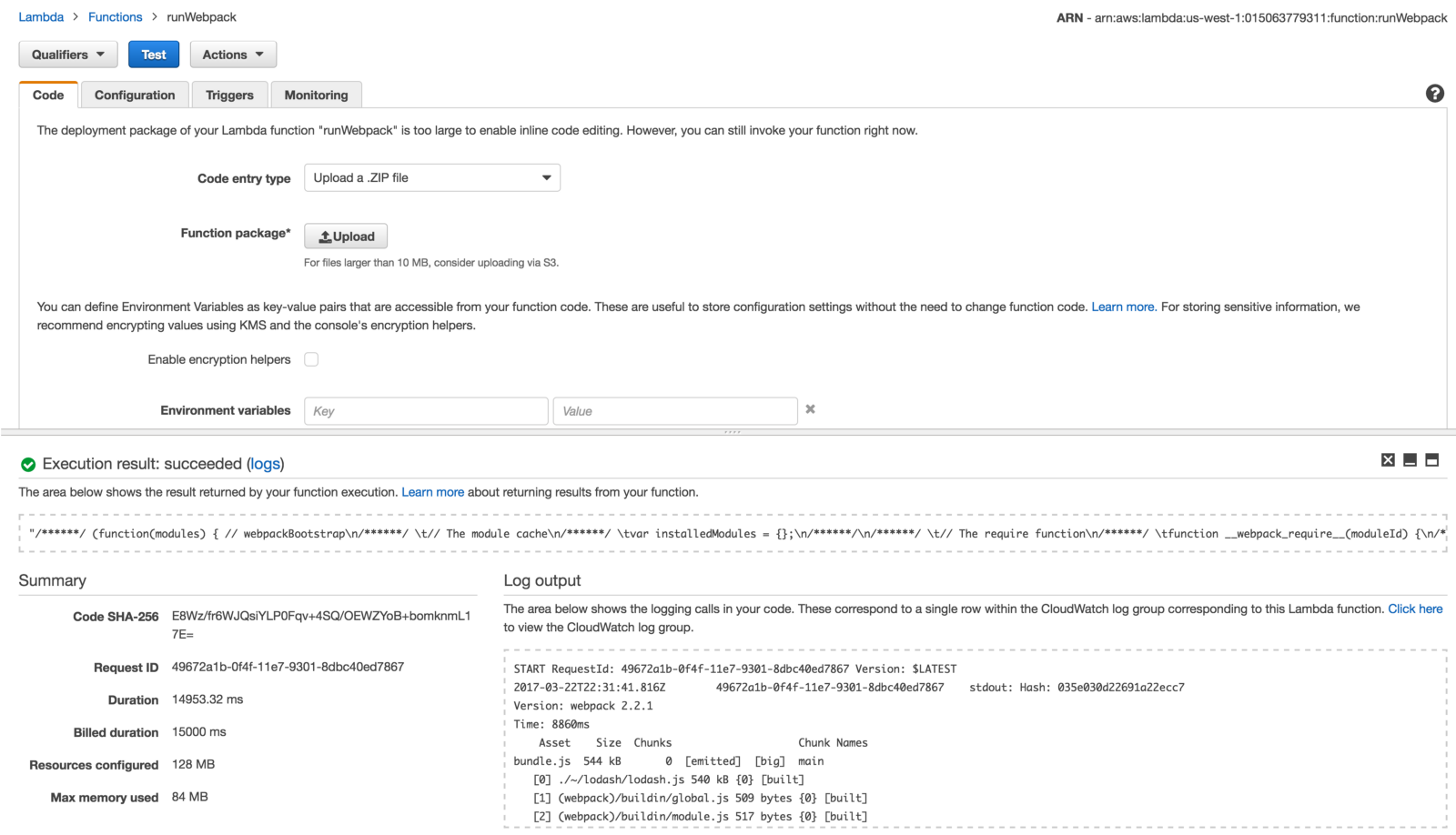

Now if you want to test your Lambda function, you will need to click the button test and you should have an output similar to this one:

you can see easily the output produced by this Lambda function that is the content inside the Javascript bundle created by Webpack

If you want to test live the Lambda I created you can trigger it from this link

Where to go from here

Obviously the example described is very basic and it works mainly with the project I created, but it is useful to know also how you could expand this example:

  1. AWS Lambda functions accept arguments passed when we trigger them, therefore potentially you could upload your project files in S3 and trigger the Lambda function directly after the upload.
    In fact Lambda can be triggered by several cloud software in AWS like DynamoDB, SNS and so on; S3 is present in the list.
  2. In order to expose the Lambda externally you will need to connect it via API Gateway, another tool provided by AWS.
    In the example I shared above I configured API Gateway to trigger my Lambda function when someone is calling a specific URL.
  3. The fastest way, and my personal recommendation, to work with AWS Lambda is via a CLI tool like Serverless Framework, you won’t need to configure manually API Gateway and your Lambda environment because Serverless Framework will provide a boilerplate to work with.
    On top of that it will allow you to test your Lambda functions locally without uploading them every time on AWS.
    There are many other CLI tools available but at the moment Serverless is the most complete and documented with a large community behind it.
  4. Recently Amazon added the possibility to set environment variables for Lambda functions, therefore if your project requires them you will have the possibility to configure easily via AWS console or inside Serverless framework configuration file.
  5. If you don’t want to upload a CLI tool with the node_modules folder, you can create an executable with all static dependencies and upload just that file inside the ZIP file.
    For Node I found a tool that works pretty well with Webpack and NPM called EncloseJS.
  6. Remember to not abuse the power of the serverless ecosystem but understand the pros and the cons before starting using it because in some cases it’s definitely not the right choice
  7. An important consideration of the combination API Gateway + Lambda is that could work with HTTP2 protocol out of the box and you can use Cloudfront to cache your responses (also if they are dynamic) with just few configurations to set in the API Gateway console.
  8. With Lambda you pay just what you use, therefore if you use it for cron services, automation pipelines, triggering databse backup operations or similar, you could end up savings quite few dollars compare to an EC2 instance.
